Edan DUS 60 Ultrasound Machine
Working with the wrong provider can result in:
Incorrect Fit
Purchasing a system that doesn't work for you needs.
Lack Of Support
Lack of post sales support when you need it.
Overpaying
Paying more then you should for a specific piece of equipment.
Our customers no longer struggle with…
- Selecting the appropriate equipment
- Support when needed
- Long delivery times
- Finding quality equipment
- Paying the right price
- Complex ordering processes
How It Works:
Consult With Our Experts
Work with one of our experience equipment consultants to find the best ultra sound solution for your specific needs, and budget.
Accepting Pricing & Submit Payment
Select the ultrasound of your choice and submit payment. Most equipment ships with in 7 days
Enjoy Using The Equipment
In-depth virtual or on-site applications training and kicks-ass post sales support helps you get on the right track.
Manufacture Description:

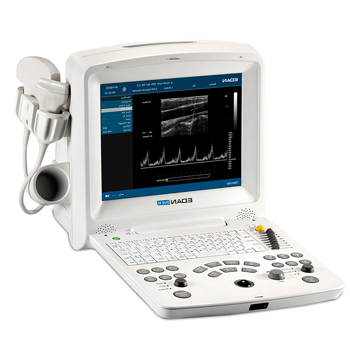

Edan DUS 60
Digital Ultrasonic Diagnostic Imaging System
The DUS 60 is an impressive new compact ultrasound system, providing superb value and quality across the entire range of applications. The addition of PW Doppler increases diagnostic information content.
- Abdominal
- Urology
- Small Parts
- Obstetrics
- Pediatrics
- Peripheral Vascular
- Cardiac
- Gynaecology
- Phase Inversion Harmonic Imaging technology provides best-in-class image quality
- PW Doppler supplies physiologic information for increased diagnostic value
- Five-frequency transducers increases versatility
Go anywhere you need to go
- Compact and lightweight design for excellent mobility
- Built-in battery provides up to 2 hours of point-of-care-imaging
- Large capacity data storage
Intuitive user-friendly design
- One touch image optimization via smart IP key
- Backlit, easy-to-use control panel
- User-defined keys to customize your work-flow
Practical tools enhance efficiency
- Intelligent 8-segment TGC for precise adjustment
- Multi-format data transfer via USB and DICOM
- Multiple-pseudo-color options enhance image presentation
Technical Specifications
General
Imaging mode: B,2B, 4B, B+M,M, and PW
Gray scales: 256
Display: 12.1” TFT-LCD
Transducer frequency: 2.0-10.0 MHZ
Transducer connector: 2 standard
Beam-forming: Phase Inversion Harmonic Imaging
Multi-Beam Technology
Synthetic Receiving Aperture
Dynamic Receiving Focusing
Real-time Dynamic Aperture
Dynamic Frequency Scanning
Dynamic Apodization
Scanning angle: Up to 152 degrees (transducer dependent)
Scanning depth (mm): From 19 to 324 (transducer dependent)
Applications: Abdomen, obstetrics, gynecology, small parts, musculoskeletal, cardiology
Functions
Cine loop: 256 frames bidirectional cine-loop
Zoom: X1.0, X1.2, X1.4, X1.6, X2.0, X2.4, X3.0, X4.0 in distance
Panoramic zoom in real-time and freeze
Storage media: Built-in Flash, Internal large capacity data storage
Built-in image archive: 504MB built-in image storage
Body mark: >130 types
Transducer auto-detection
Others
Peripheral ports: S-video output: 1
Video output: 1
VGA output port: 1
USB port: 2
Ethernet port: 1
Remote control: 1
Footswitch port: 1
Power supply: 100V-240V~50Hz/60Hz
Lithium battery: Continuous operation for up to 2 hours
Dimensions: 330mm(13.0”) (L) X 220mm(8.7”) (W) X 320mm (12.6”) (H)
Net weight: 7.1kg (15.7 lb)
Imaging Processing
Pre-processing: Dynamic Range
Frame Persist
Gain
8-segment TGC adjustment
IP (Image Process)
Post-processing: Gray map
Speckle Reduction Technology
Pseudo-color
Gray Auto Control
Black / white invert
Left / right invert
Up / down invert
Image rotation at 90o interval
Measurement & Calculation
B-mode: Distance, circumference, area, volume, ratio, %stenosis, histogram, and angle
M-mode: Distance, time, slope, and heart rate
Doppler: Time, heart rate, velocity, acceleration, trace, and RI
Software packages: General, obstetric, gynecology, small parts, orthopedics, cardiology, peripheral vascular, and urology
Display
Date, Time, Probe Frequency, Frame Rate, Patient Name, Patient ID, Hospital Name, Depth, Frame Rate, Exam Type, Measurement Values, Body Marks, Annotation, Probe Position
Standard Configurations
DUS 60 main unit
12.1” TFT-LCD monitor
Two transducer connectors
Pulsed wave Doppler
Multiple-pseudo-color imaging
256 frames cine loop memory
504MB built-in image storage
Two USB ports
Measurement & calculation software packages
Convex array transducer: C361-2 (2.5/3.5/4.5/H2.5/H2.7MHz)
Options
Micro-convex array transducer: C611-2 (5.5/6.5/7.5/H4.5/H4.7MHz)
Linear array transducer: L761-2 (6.5/7.5/8.5/H4.5/H4.7MHz)
Linear array transducer: L743-2 (6.5/7.5/8.5/H4.5/H4.7MHz)
Endovaginal transducer: E611-2 (5.5/6.5/7.5/H4.5/H4.7MHz)
Endorectal transducer: E741-2 (6.5/7.5/8.5/H4.5/H4.7MHz)
Needle-guide brackets for transducers
Large capacity data storage
Video printer
Laser printer
Inkjet printer
Footswitch
Li-on battery
Mobile trolley
Hand-carry bag
DICOM 3.0
UMS100 workstation software
